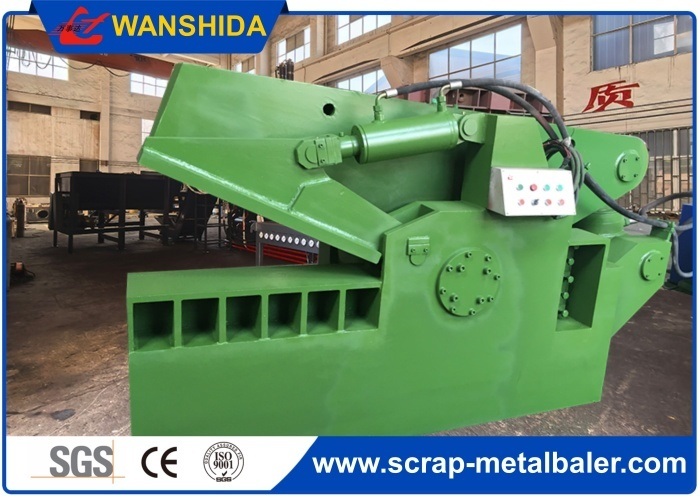

Q43-2000 Hydraulic Alligator Shear for Scrap Steel Cutting

Q43-2000 Hydraulic Alligator Shear for Scrap Steel Cutting

1. Product Description

The Q43-2000 hydraulic alligator shear is designed for scrap steel cutting in recycling yards, metal collection stations, and workshop-side scrap handling applications. This model is suitable for users who need a compact hydraulic cutting machine for repeated daily shearing of ferrous scrap and steel offcuts. Based on the attached technical sheet, the machine is equipped with 2000 kN largest shear force, 800 mm shear knife length, and 8–12 cuts per minute, which makes it suitable for practical medium-duty scrap cutting work.

In daily scrap processing, long or irregular steel pieces often create handling difficulty before loading, sorting, or downstream recycling. A hydraulic alligator shear helps solve this problem by cutting scrap into shorter and more manageable sizes. Compared with larger gantry or guillotine shear systems, an alligator shear is typically used where buyers need a more compact cutting solution with simpler feeding and repeated short-cycle operation.

The attached specification sheet shows that this model uses 21 MPa hydraulic system pressure, 210 mm cut cylinder stroke, 60 mm hold cylinder stroke, and 80 kN largest holding force. These parameters support stable blade movement and material holding during cutting cycles. The machine also uses a 22 kW motor and a 160YCY14-1B hydraulic pump with 160 ml/r nominal discharge and 31.5 MPa nominal pressure.

2. Product Positioning

The Q43-2000 is best positioned as a hydraulic alligator shear for scrap steel cutting. It is suitable for:

1. Scrap steel cutting
2. Workshop offcut reduction
3. Recycling station metal size reduction
4. Repeated short-cycle cutting work
5. Compact ferrous scrap handling operations

This model is more suitable for buyers looking for a compact scrap cutting machine than for those seeking a large continuous-feed heavy scrap shear line.

3. Suitable Materials

This model is generally suitable for cutting:

1. Scrap steel
2. Steel offcuts
3. Light-to-medium ferrous scrap
4. Short bar and section offcuts
5. Recyclable steel pieces requiring size reduction

The attachment itself identifies the machine as a Metal Shear, and the product direction here is aligned to the user’s stated 200 ton alligator shear positioning. The cited technical sheet confirms the machine class and main cutting parameters.

4. Recommended Application Scenarios

4.1 Scrap Yard Daily Steel Cutting

Suitable for scrap yards that need repeated cutting of steel scrap into shorter sections for easier storage and transfer.

4.2 Workshop Offcut Handling

Suitable for workshops that generate steel offcuts and need a practical hydraulic cutting solution near the production area.

4.3 Recycling Station Material Preparation

Suitable for recycling points that need to reduce metal size before sorting, loading, or resale.

4.4 Medium-Duty Short-Cycle Cutting

With 8–12 cuts per minute, this model is suitable for operations requiring repeated short-cycle cutting rather than large continuous chamber-fed processing.

5. Technical Specification Table

6. Core Product Advantages

6.1 2000 kN Shear Force for Practical Scrap Cutting

The attached sheet lists 2000 kN largest shear force, giving this model practical cutting capability for repeated scrap steel shearing tasks.

6.2 800 mm Shear Knife Length

An 800 mm shear knife length provides useful blade coverage for general scrap steel cutting work.

6.3 High Cutting Frequency for Repeated Work

The listed 8–12 times/min cutting frequency makes this model suitable for repeated short-cycle operation.

6.4 Stable Hydraulic System

The machine uses 21 MPa hydraulic system pressure, supported by a pump with 31.5 MPa nominal pressure, helping maintain stable hydraulic action during cutting work.

6.5 Practical Motor Configuration

The machine is equipped with one Y200L2-6 motor, rated at 1460 rpm and 22 kW, which fits the published hydraulic and cutting configuration.

7. Working Process

7.1 Material Feeding

Scrap steel or steel offcuts are placed into the blade area for cutting preparation.

7.2 Material Holding

The hydraulic hold system applies force to stabilize the material before shearing. The technical sheet lists 80 kN largest holding force and 60 mm hold cylinder stroke.

7.3 Hydraulic Cutting

The cut cylinder drives the blade movement through a 210 mm stroke, delivering the published 2000 kN shearing force.

7.4 Output and Collection

After cutting, the shortened material can be collected for storage, transfer, or downstream recycling.

8. RFQ

8.1 What information should buyers provide before quotation?

1. What type of scrap steel do you mainly cut?
2. What is the maximum material size or section size?
3. How many cutting cycles or how much daily output do you expect?
4. Will the machine be used in a scrap yard, workshop, or recycling station?
5. What power supply standard do you use locally?

8.2 Why is this information important?

1. It helps confirm whether the Q43-2000 matches your material type.
2. It helps determine whether the 800 mm blade and 285 mm blade opening fit your cutting needs.
3. It improves quotation accuracy and model recommendation.

9. FAQ

9.1 What is the shear force of this hydraulic alligator shear?

The attached technical sheet lists 2000 kN largest shear force.

9.2 What is the blade length?

The listed shear knife length is 800 mm.

9.3 What is the cutting frequency?

The sheet lists 8–12 times/min.

9.4 What is the hydraulic system pressure?

The hydraulic system pressure is 21 MPa. The hydraulic pump nominal pressure is 31.5 MPa.

9.5 What motor power does this machine use?

The machine uses one 22 kW motor, model Y200L2-6, with 1460 rpm rated speed.

10. After-Sales Service

Jiangsu Wanshida Hydraulic Machinery Co., Ltd. can provide support for equipment selection, technical confirmation, production follow-up, testing before delivery, and installation guidance. Before final confirmation, buyers should provide material type, maximum size, and expected usage conditions so the recommended alligator shear configuration matches actual cutting needs.

11. Call to Action

If you are looking for a hydraulic alligator shear for scrap steel cutting, send us your scrap type, maximum material size, and expected cutting requirement. We will recommend a suitable cutting solution based on your actual application.
